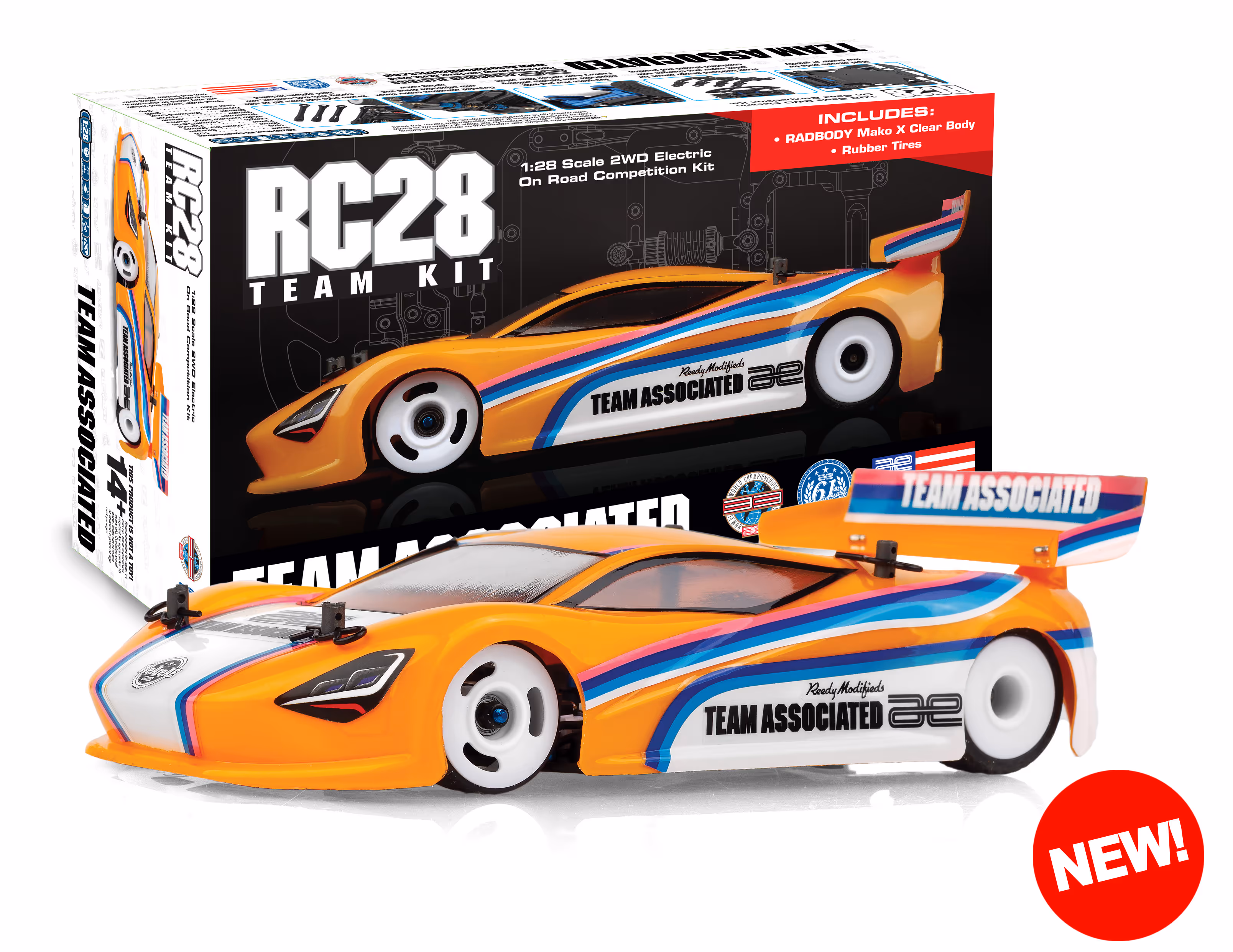

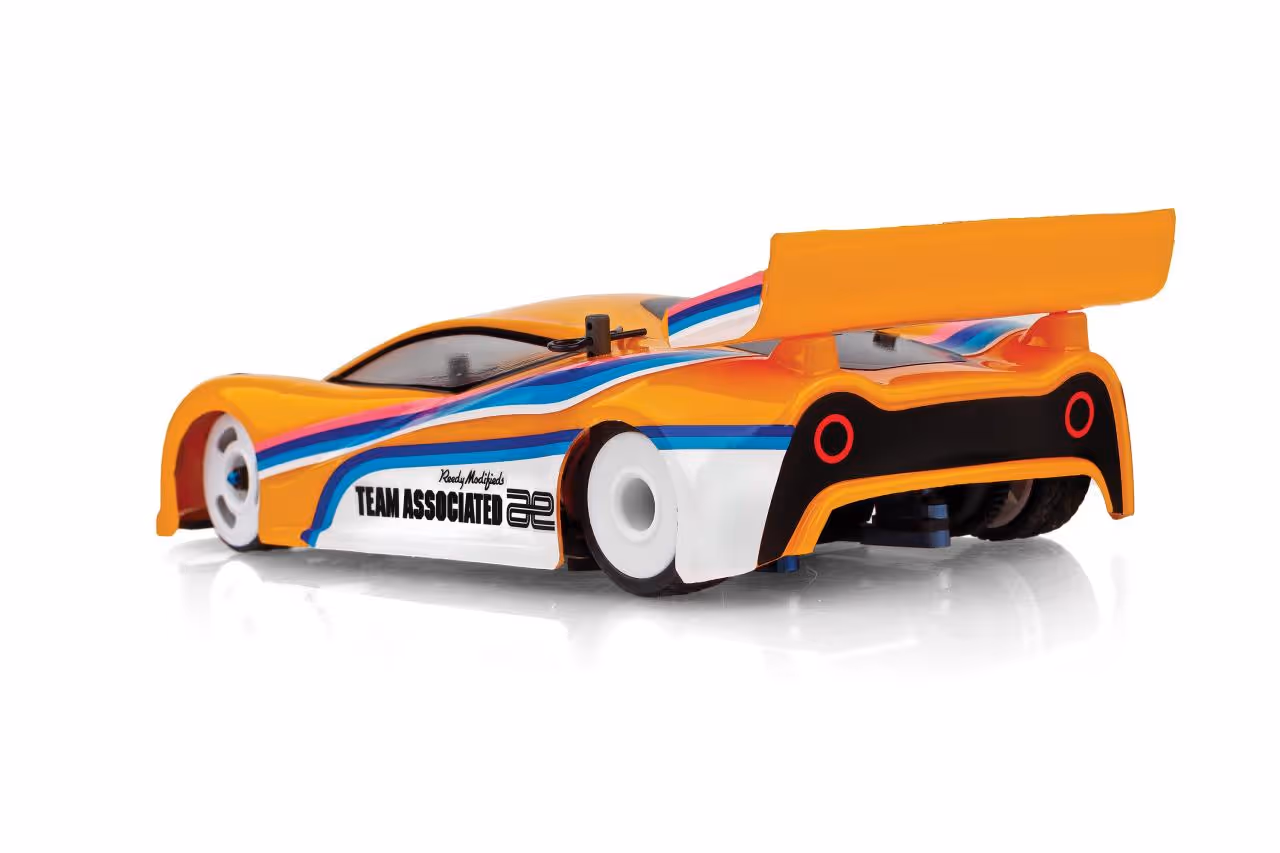

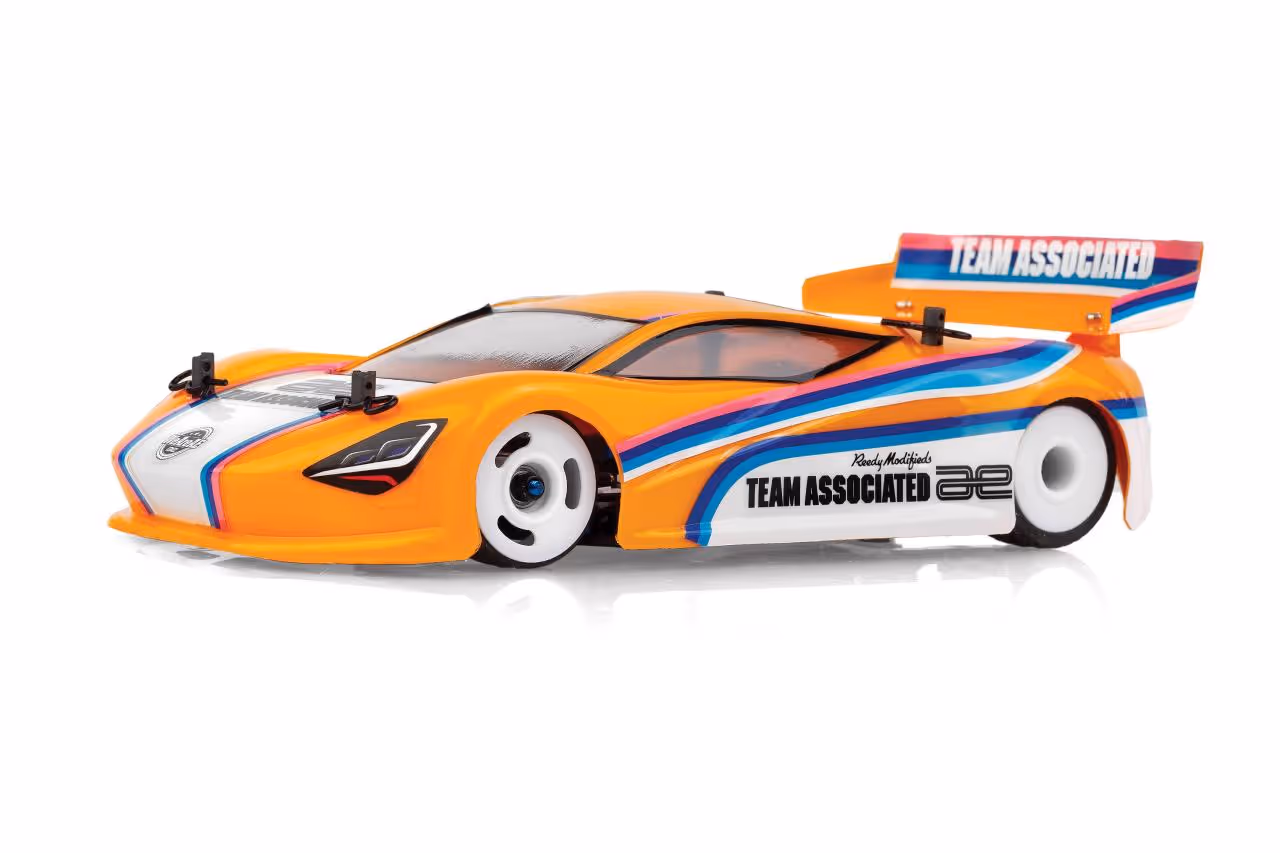

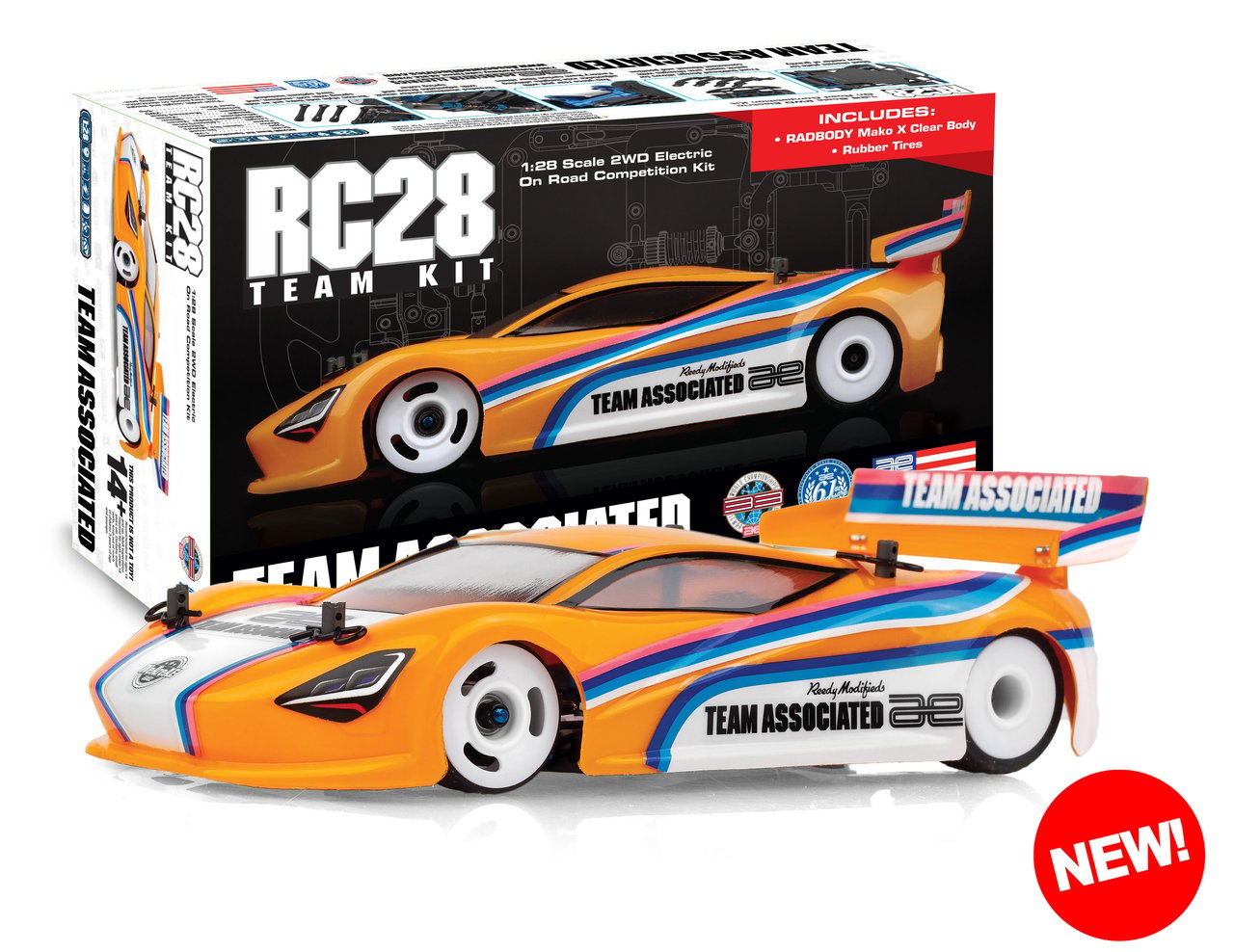

Team Associated RC28R Team Kit

Compact on-road precision from Team Associated

The Team Associated RC28R is a compact on-road race car designed with the same engineering precision found in every AREA 51-developed product. Despite its 1:28 scale footprint, the RC28R delivers big performance in an easy to set up package — making it the ideal choice for club-level competition and backyard bashing alike.

What’s in the kit

• RADBODY Mako X clear body and tires
• White wheels (accept optional front wheel flanges)
• Universal front bumper
• Gear differential (compatible with aftermarket options)
• Torsion side links — soft, medium, and hard options included
• Optional moulded upper arms for caster and camber tuning
• Factory Team carbon fibre shims for axle height adjustment

Features

Suspension & handling Fixed-arm front end with optional upper arms to dial in caster and camber. Torsion-style side links replace a conventional side spring — three stiffness options let you adapt to track grip without a spring kit.

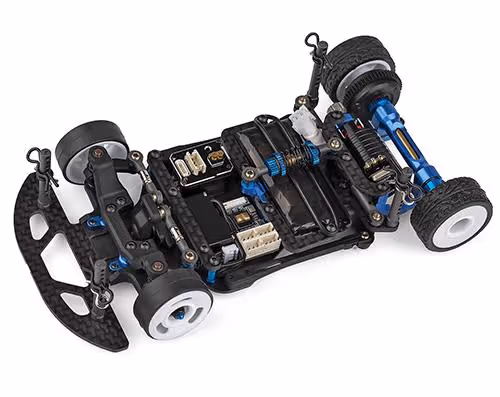

Chassis Steel chassis plate keeps the centre of gravity low. The insert-adjustable roll centre lets you tune chassis roll to suit grip conditions. Pitch, roll, and droop are further adjustable via the threaded aluminium centre shock, spring collars, and side damper tubes.

Rear pod Two-piece rear pod with Factory Team carbon fibre shims for quick axle height changes. The gear differential is included and compatible with a wide range of aftermarket options.

Steering Adjustable servo mount allows Ackermann fine-tuning on the fly — no rebuild required between runs.

Specifications

Scale	1:28
Drive	2WD electric
Length	140 mm (5.51 in)
Wheelbase	98 mm (3.86 in)
Terrain	On-road
Part number	ASC20168

Assembly

This is a team kit — full assembly is required. Electronics (ESC, motor, servo, receiver) and a transmitter are sold separately. Ideal for experienced builders who want full control over component selection.

Shipping

Price of A$444.00 includes delivery within Australia.
